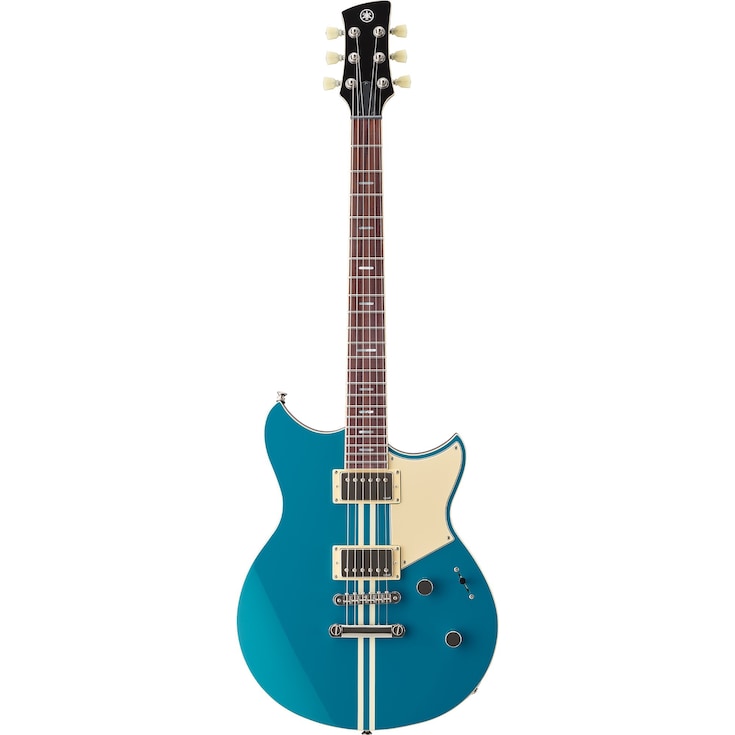

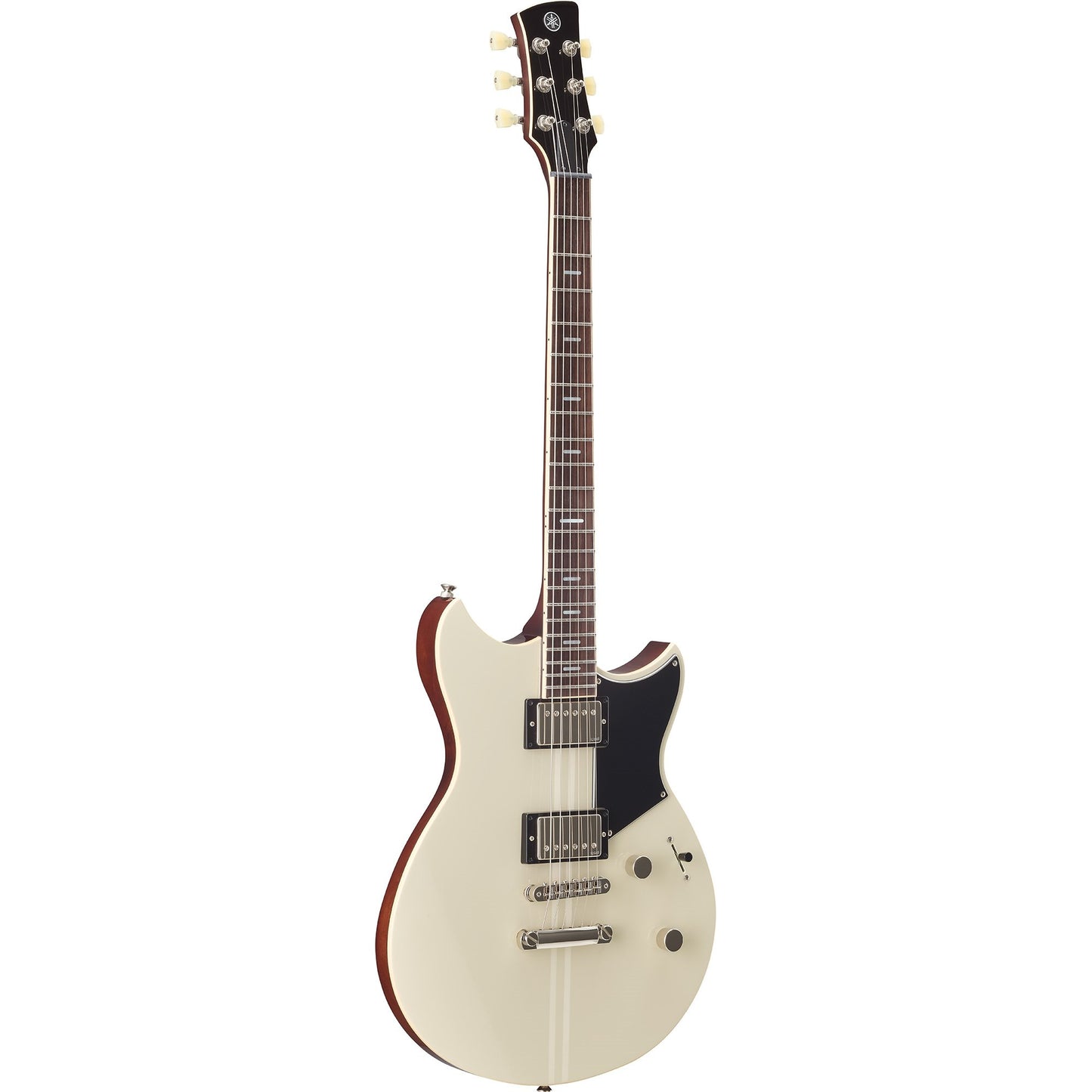

Yamaha Revstar II Standard Humbuckers
Yamaha Revstar II Standard Humbuckers
1 in stock

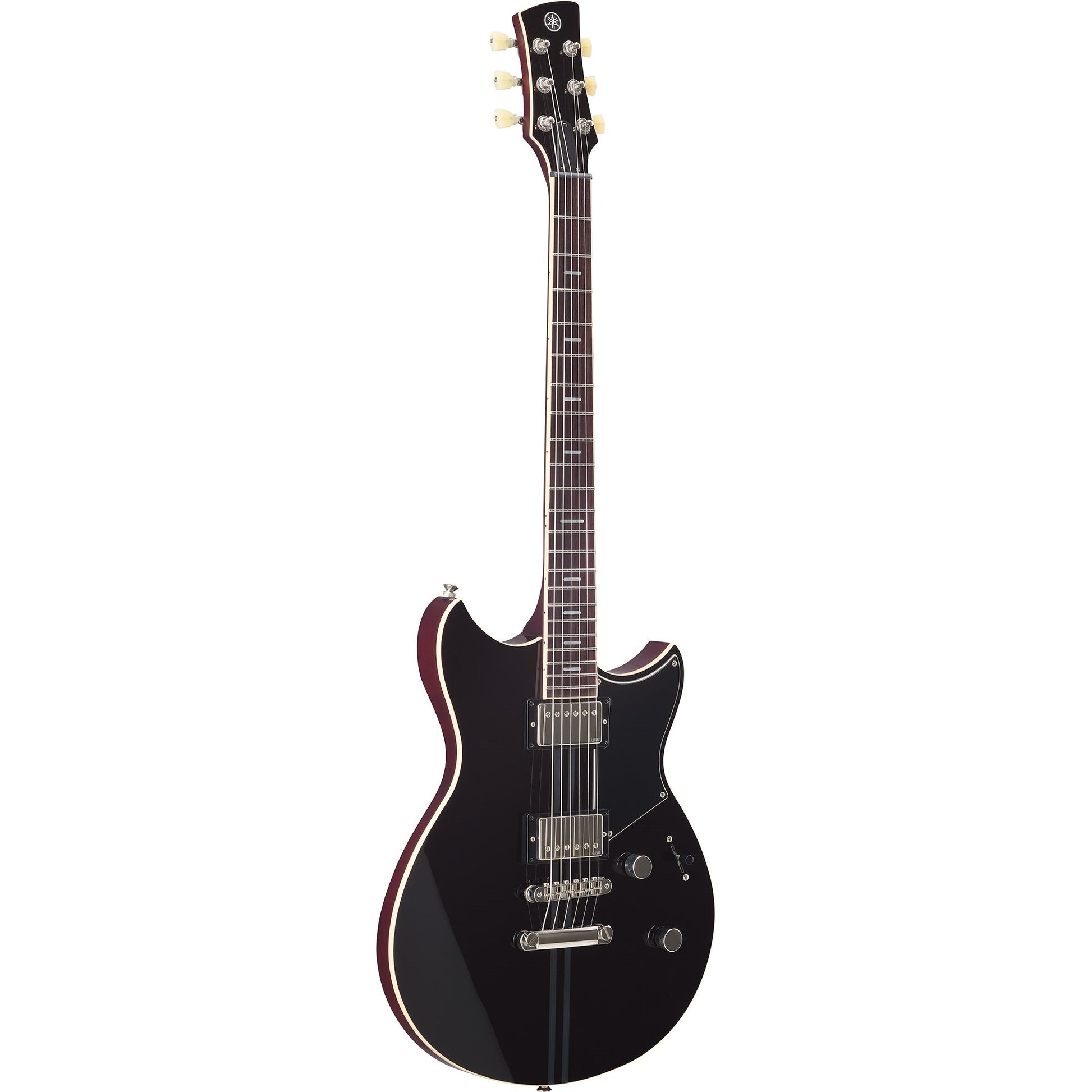

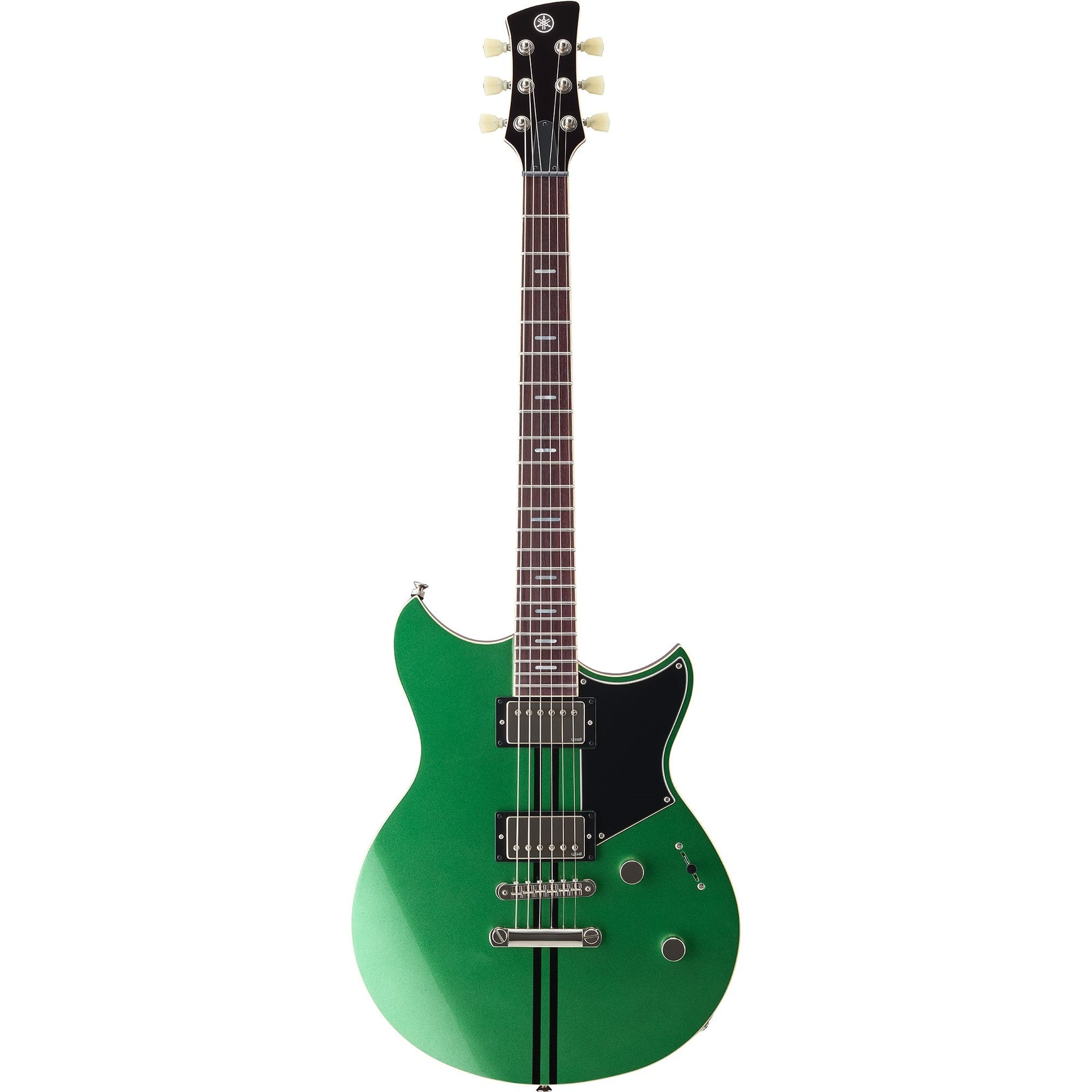

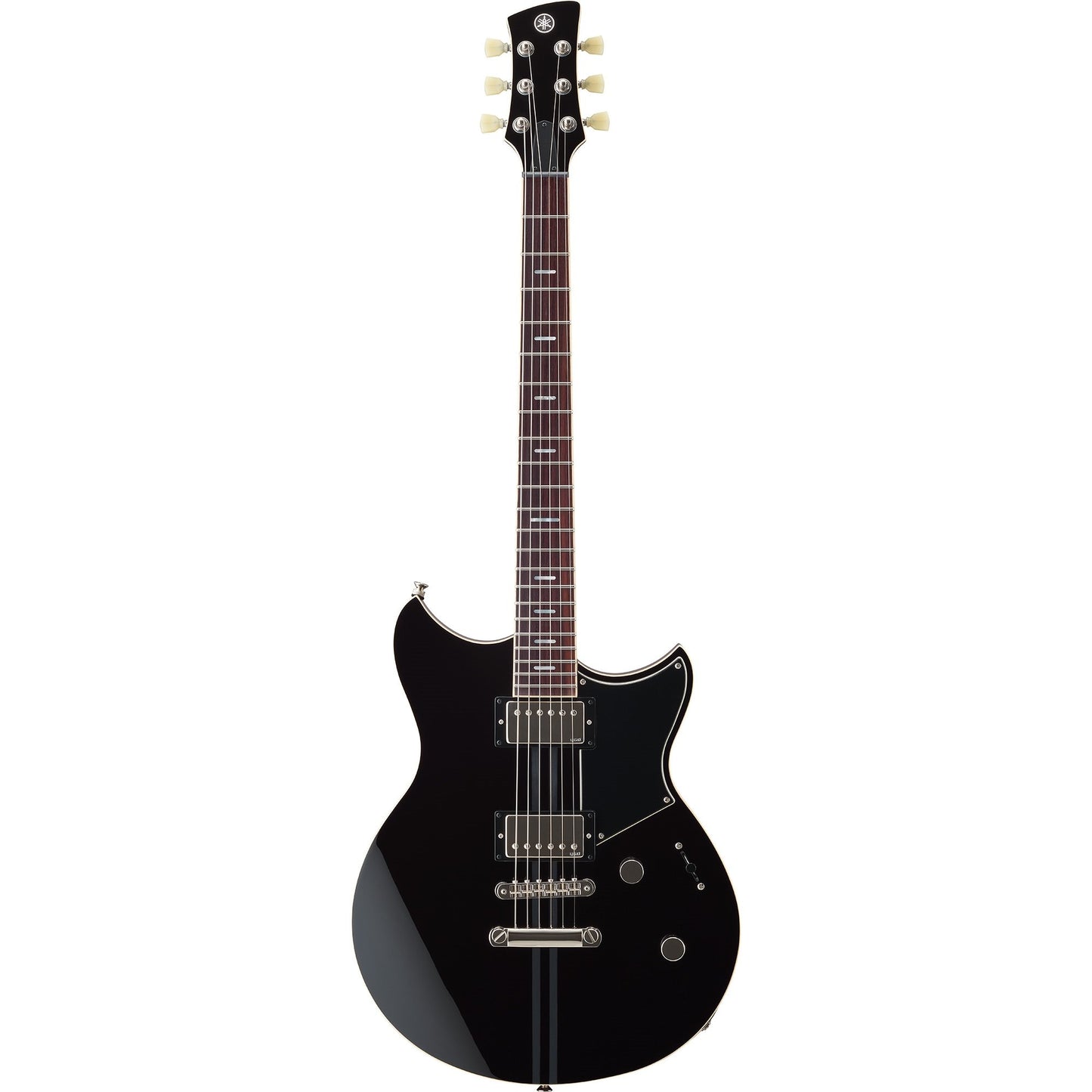

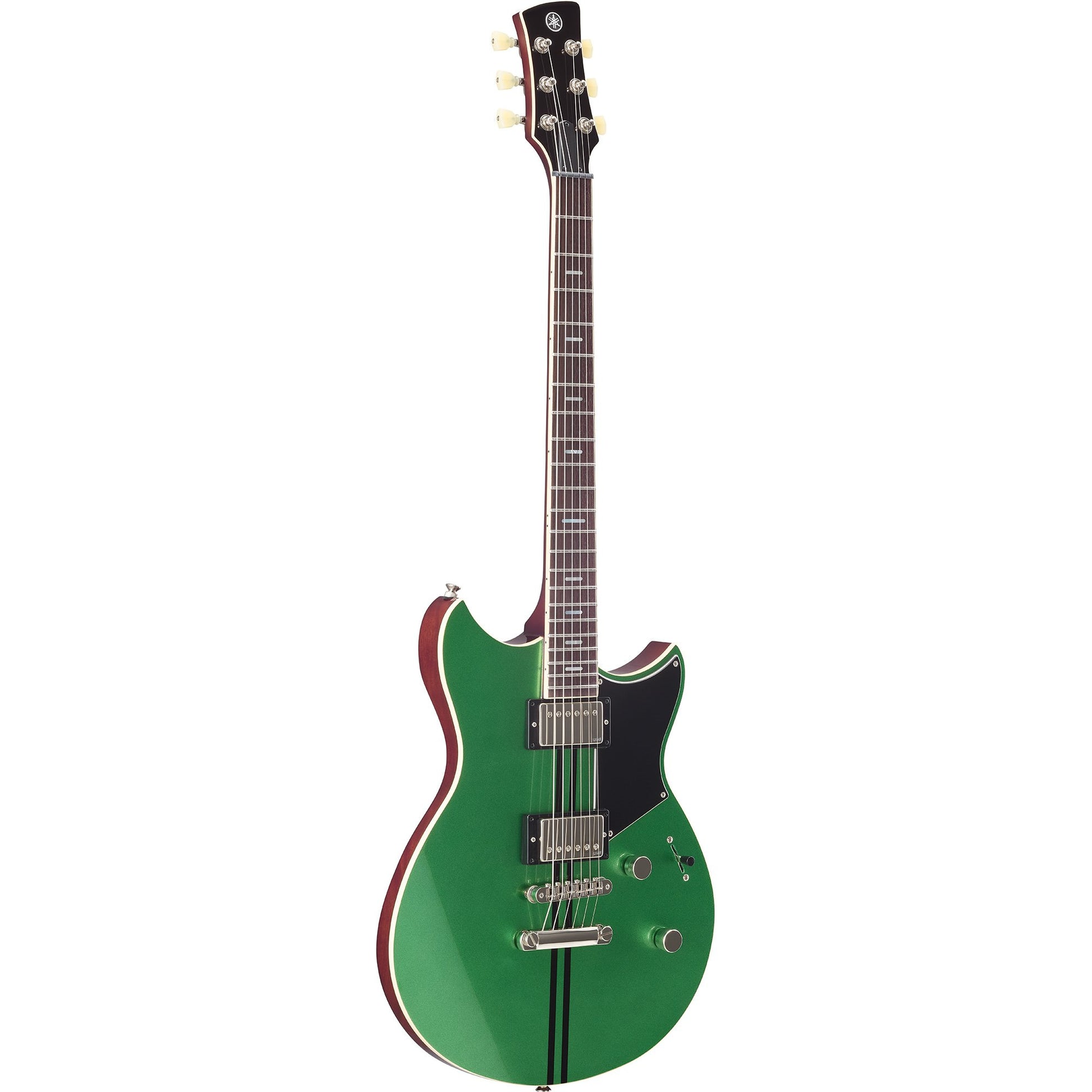

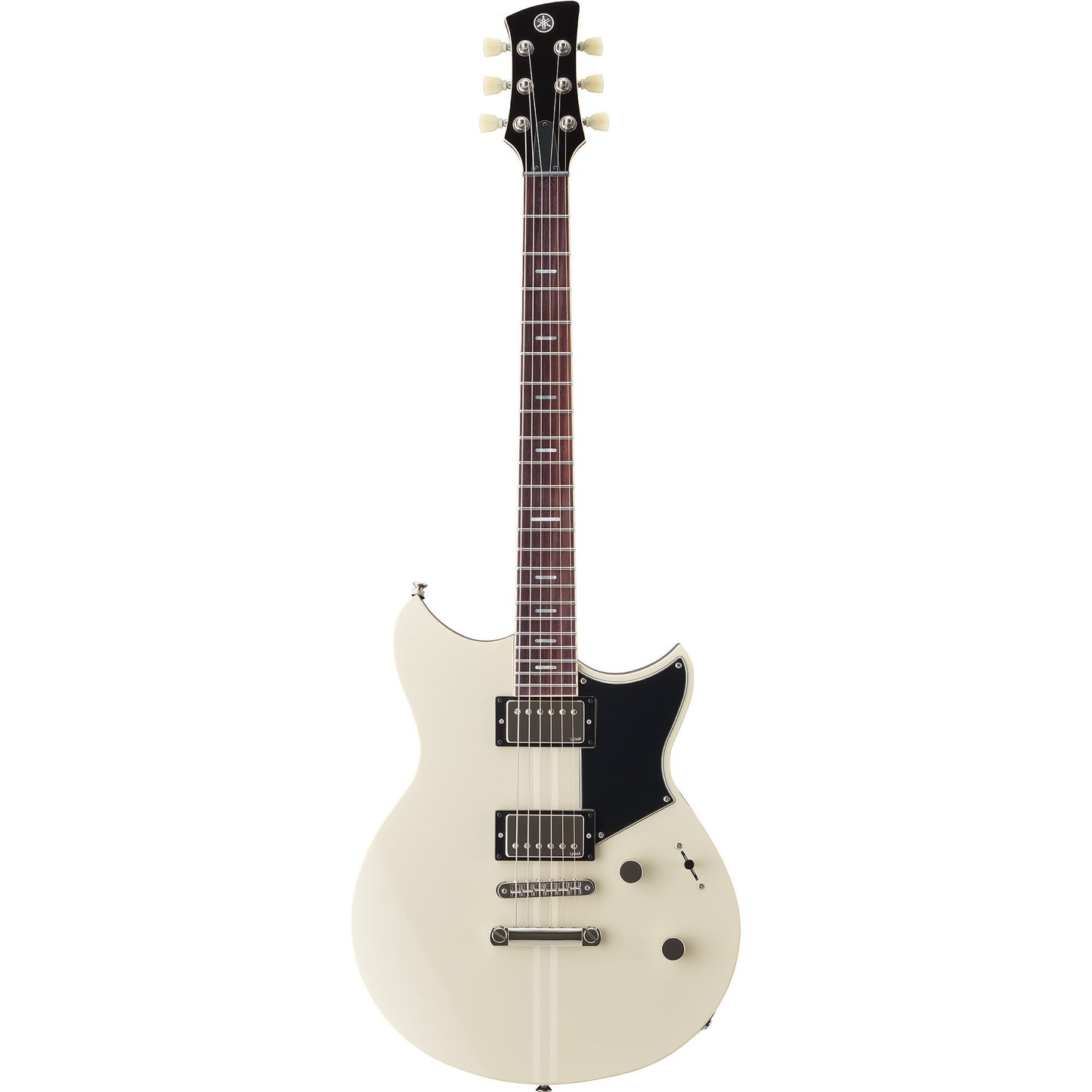

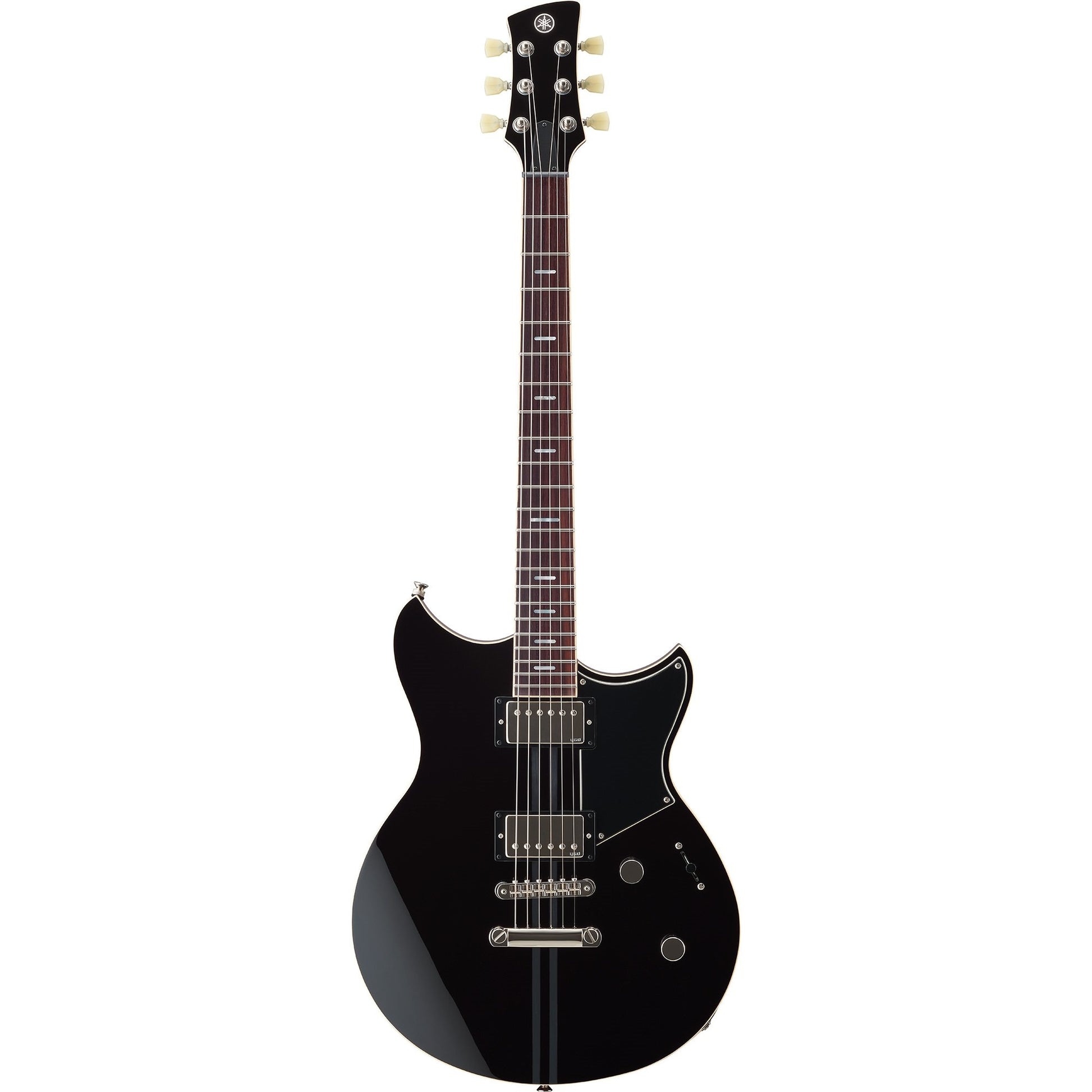

The RSS20 Revstar Standard features four finish options, a chambered body and carbon-reinforced neck, dual humbucking pickups, 5-way switching, and a passive Focus Switch, providing exceptional versatility.

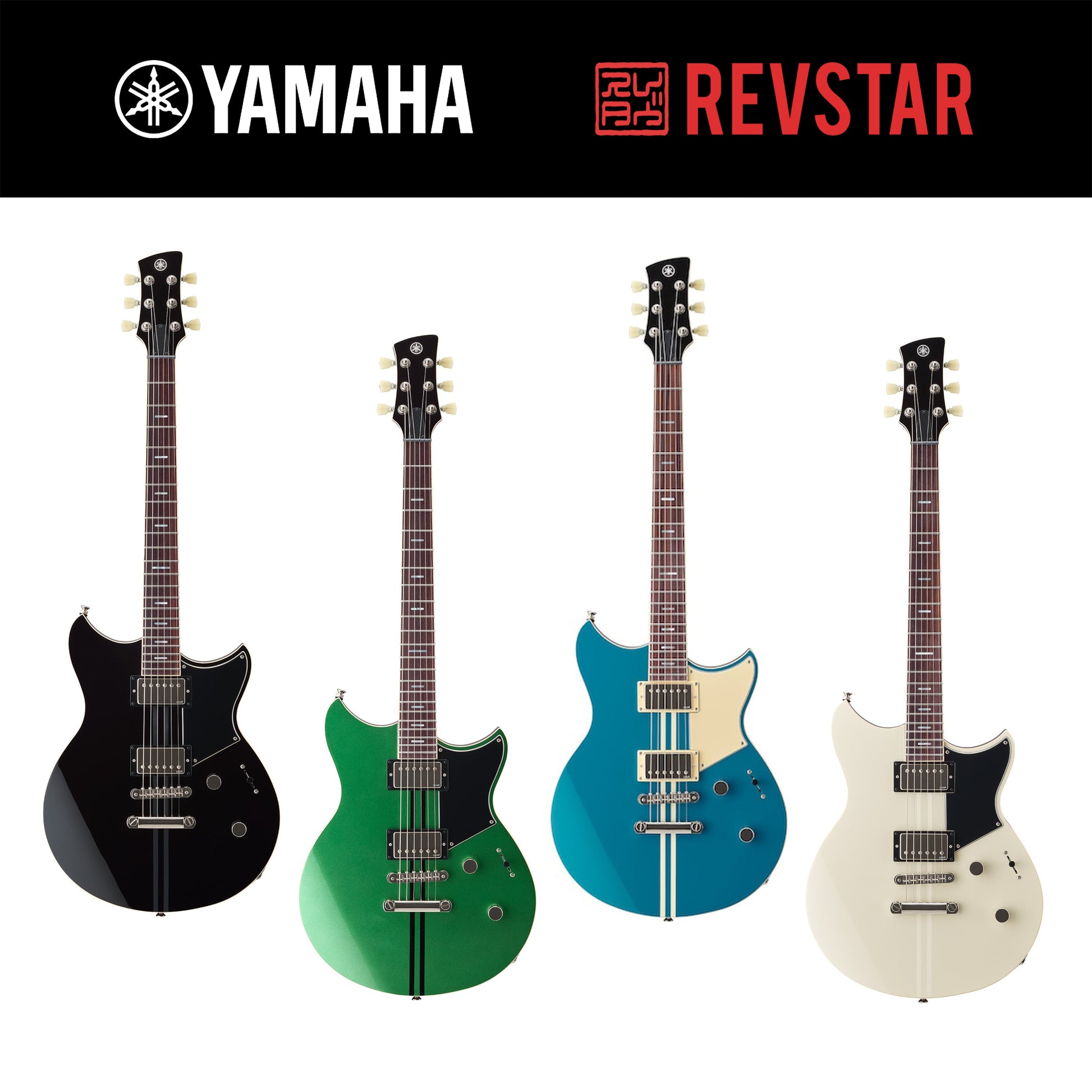

- 4 Café racer inspired finishes
- Chambered maple and mahogany body
- Carbon-reinforced 3-piece mahogany neck
- 2 Alnico V humbucking pickups
- 5-Position pickup selector
- Passive Focus Switch
- Deluxe gig bag included
A NEW GENERATION
The original Revstar guitars launched in 2015 - Yamah's first new electric guitar series in more than a decade. A completely refreshed lineup was introduced in 2022.
MUSIC AND MOTORS
The Revstar style is inspired by café racer motorcycles—stripped-down performance machines that were customized to reflect the personality of their riders.
MODERN. CLASSIC.
Revstar balances Japanese innovation and traditional artisanship. Modern features enhance playability, versatility, and tone, while the design references classic Yamaha electric guitars going back to 1966.
HANKO MARK
Used in place of a signature in Japan, the hanko stamp on every Revstar guitar is our seal of approval. Element and Standard models feature the “Revstar” hanko, while the stamp on Professional models signifies “Made in Japan.”
REVSTAR STANDARD
With two available pickup configurations, 5-way switching, and the Focus Switch passive boost, the new Revstar Standard is all about versatility.

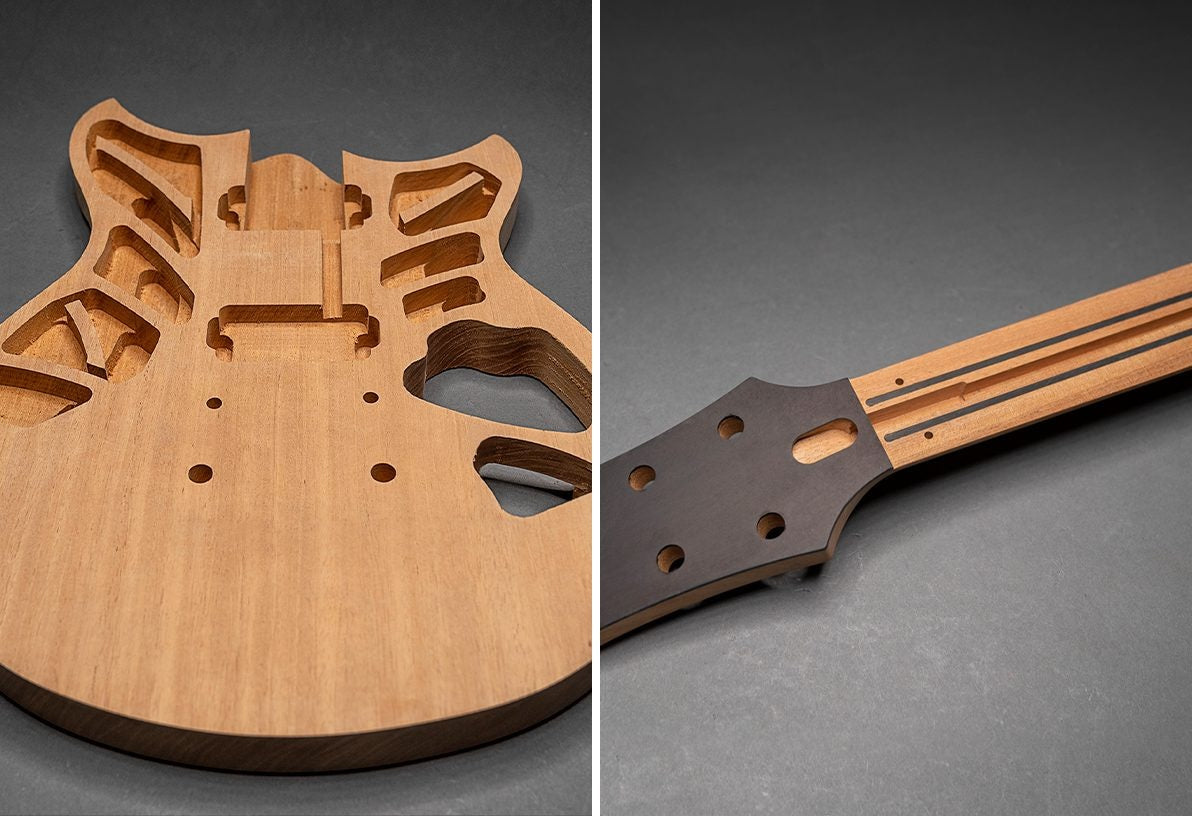

CHAMBERED BODY WITH ACOUSTIC DESIGN
Revstar Standard guitars feature chambered bodies designed to sculpt tone and reduce weight with carbon reinforcement in the neck to improve vibration transfer.

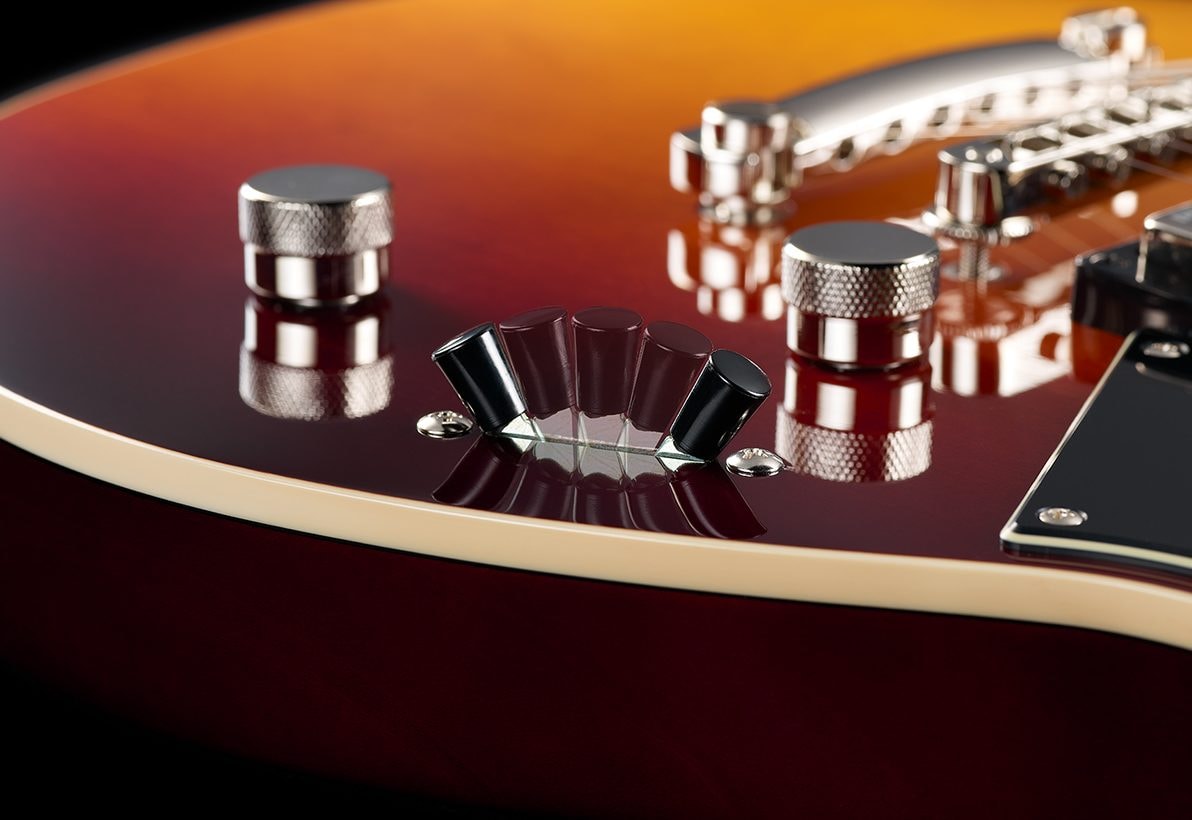

5-WAY SWITCHING
With the same 5-way switching as Revstar Professional, the subtle phase shift on positions 2 and 4 offer a fresh take on classic “in-between” sounds.

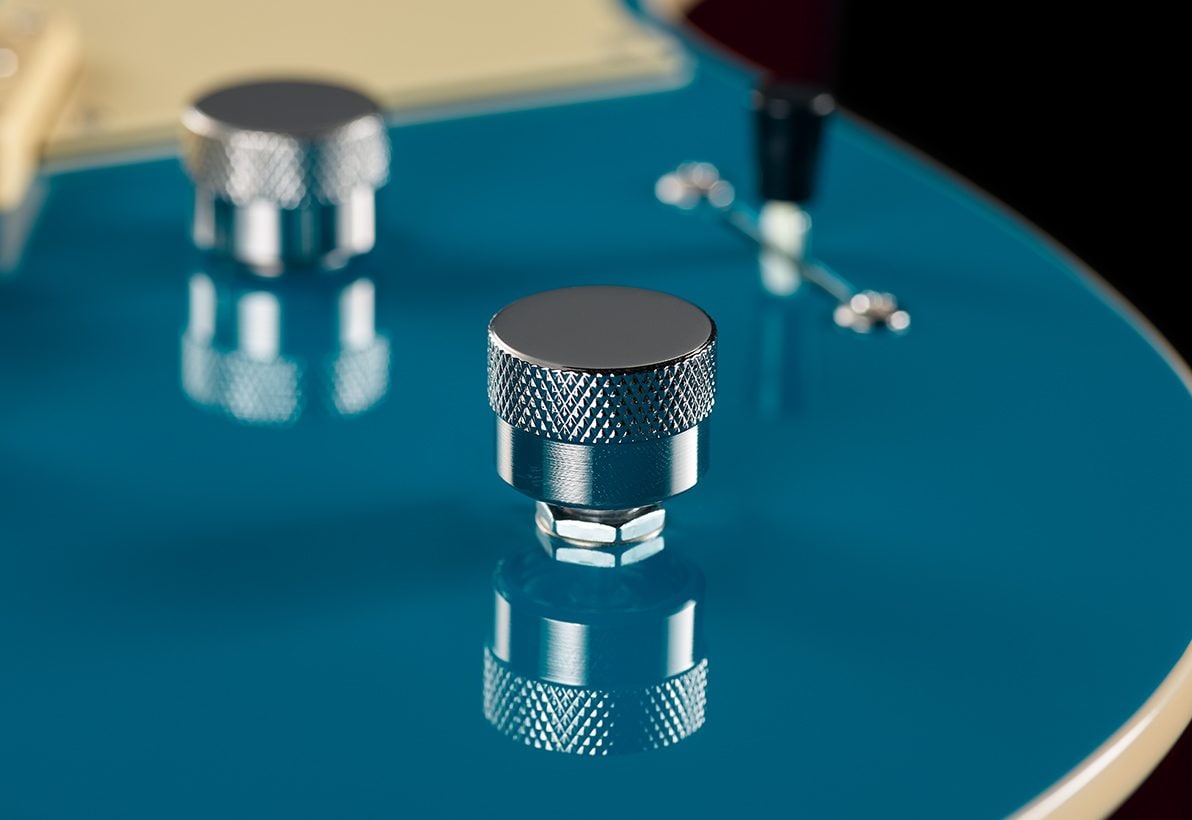

FOCUS SWITCH
The push/pull Tone control activates a passive boost with an effect similar to overwound pickups—darker highs, increased mids and lows, and an aggressive character.
Specifications
General
Construction | Set-In |
Scale Length | 24-3/4” (628.6 mm) |
Body
Body Materials | Top: Maple / Back: Chambered Mahogany |
Body Finish | Gloss Polyurethane |
Neck
Neck Materials | 3-Piece Mahogany, Carbon Reinforcement |
Neck Finish | Satin Polyurethane |
Fingerboard Materials | Rosewood |
Fingerboard Radius | 12" (304.8 mm) |
Fret Wire | Jumbo Stainless Steel |
Number of Frets | 22 |
Nut Materials | PPS |
Neck Width @ 0 Fret / 12th Fret | 41.9/52 mm |
Thickness @1st Fret / 12th Fret | 21/23.9 mm |
Electronics
Neck Pickup | VH5n: Humbucker / Alnico V |
Middle Pickup | - |
Bridge Pickup | VH5b: Humbucker / Alnico V |
Controls | Master Volume, Master Tone (Push-Pull "Focus Switch") |
Pickup Switch | 5-Position Lever Switch |
Hardware
Bridge | Tune-O-Matic |
Tremolo Arm | - |
String Spacing | 10.5 mm |
Tailpiece | Stopbar |
Tuning Machines | Die-Cast |
Pickguard |

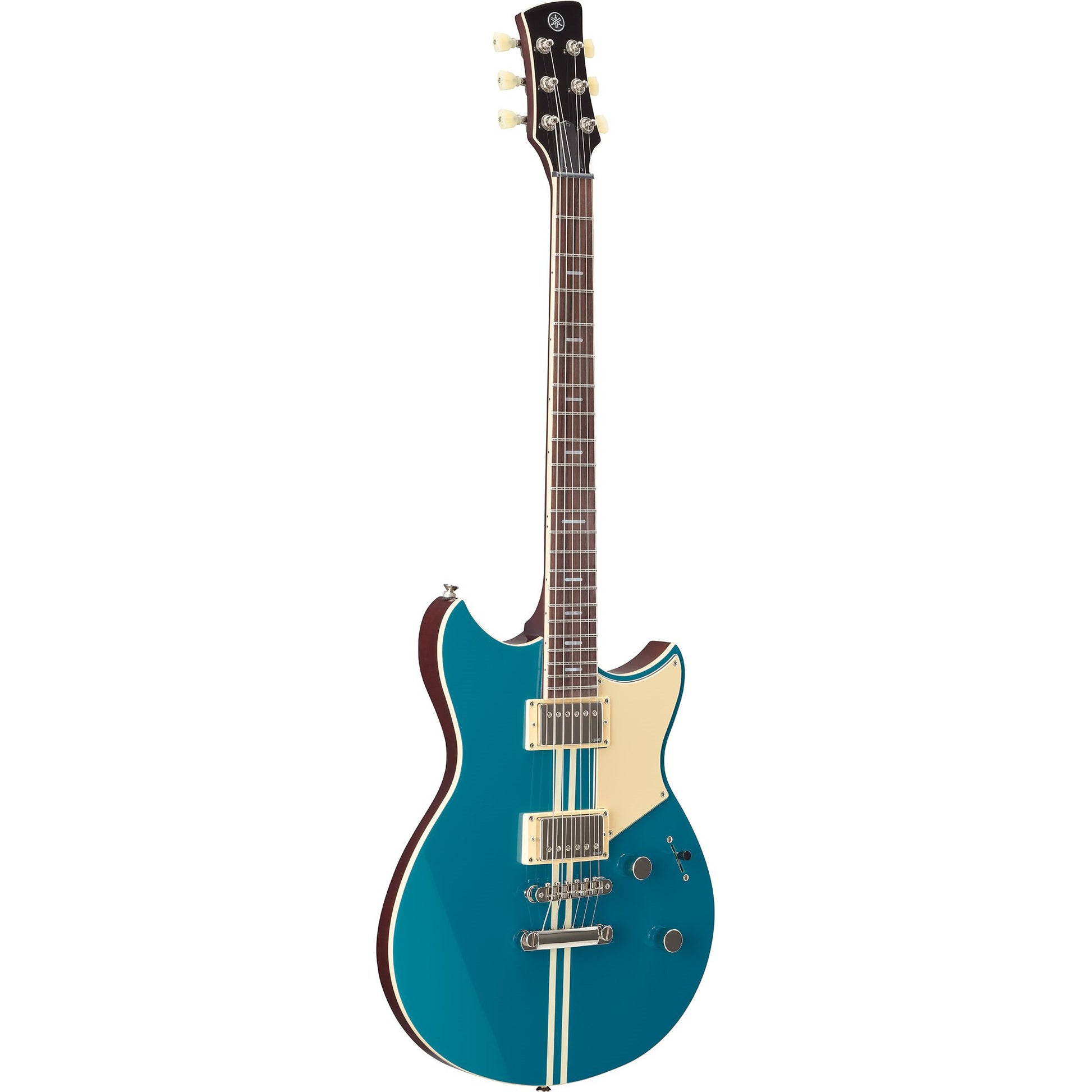

Swift Blue: 3-Ply Cream Sunset Burst/Black/Vintage White/Hot Merlot/Flash Green: 3-Ply Black |
Others
String Gauge | Elixir Nanoweb Light / 0.010-0.046 |
Case | Gig Bag |
