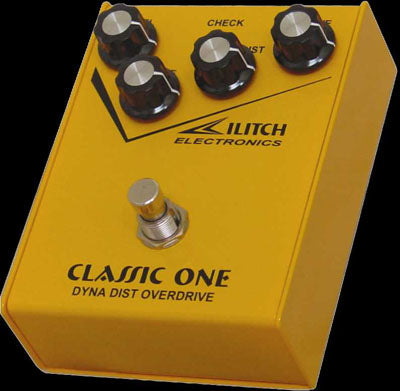

Ilitch Classic One

The Classic One pedal by Ilitch Electronics creates classic and solid rock tones from a smooth tube-like Overdrive to a harmonically rich, evenly saturated Distortion with sweet, balanced mids punch. Maximum Gain = 52dB.All Analog Reliable Performance, selected quality components, and intelligent electronic design gives you consistent performance from studio to stage independent of the size of your amplifier.Controls:DRIVE - Wide range gain control lets you adjust the overdrive and/or distortion level from very light to a hot overdrive and high saturated harmonic distortion.DYNA DIST - Mix control lets you adjust the amount of pure, smooth, tube-type overdrive (full dynamic overdrive setting) with a more aggressive, hard edged, harmonically rich fuzz distortion (full distortion setting) and all points in-between. Full DYNA position (counter-clockwise) lets more of the overdriven tone through, giving you a smooth, rounded dynamic, overdriven tube-like tone. Increasing the DIST level (rotating clockwise) increases the harmonic content for a thick, lush, harmonic filled distortion.TONE - Passive, top end roll off control lets you clean up your tone when maxing out the gain (DRIVE) and harmonic response (DYNA DIST full DIST mode). At its max it has a wide band range so you don't lose any of your original tone. Decreasing will create more darker tones without getting muffled.LEVEL - Smooth, logarithmic control lets you adjust the final output level (active when the Pedal is "ON").

Specifications:100% True Bypass ON-OFF switchingBright LED indicator1/4" Input and Output female Jacks500K Ohm Input ImpedanceLess than 10K Ohm Output ImpedanceMax. Gain - "DRIVE"@ Max:DYNA Mode (DYNA DIST @ MIN): >43 dBDIST Mode (DYNA DIST @ MAX): >52 dBUnity gain noise: < -110 dBu*Max Input level: >-3 dBuMax Output Signal: >+3 dBuDC Power supply: Battery or Regulated Adapter 9V +/- 1VCurrent consumption @ 9V DC: <4mA when "OFF" and <6mA when "ON"
