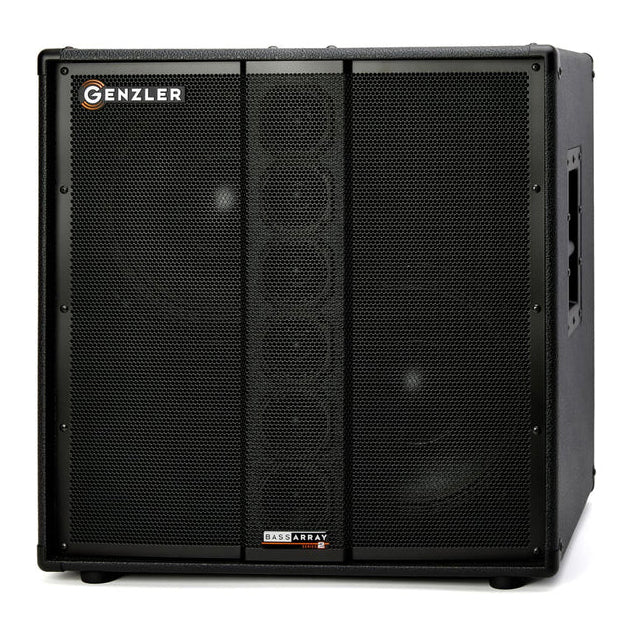

Genzler BA2-212-3, Bass Array SERIES 2 2x12 Cabinet

Description

There's a new cab in town! Genzler Amplification is proud to add the new SERIES 2 2x12" model to their revolutionary BASS ARRAY product line. The BA2-212-3 is loaded with 8 separate Neodymium cone drivers and brings a unique and dynamic signature response to the BASS ARRAY line.

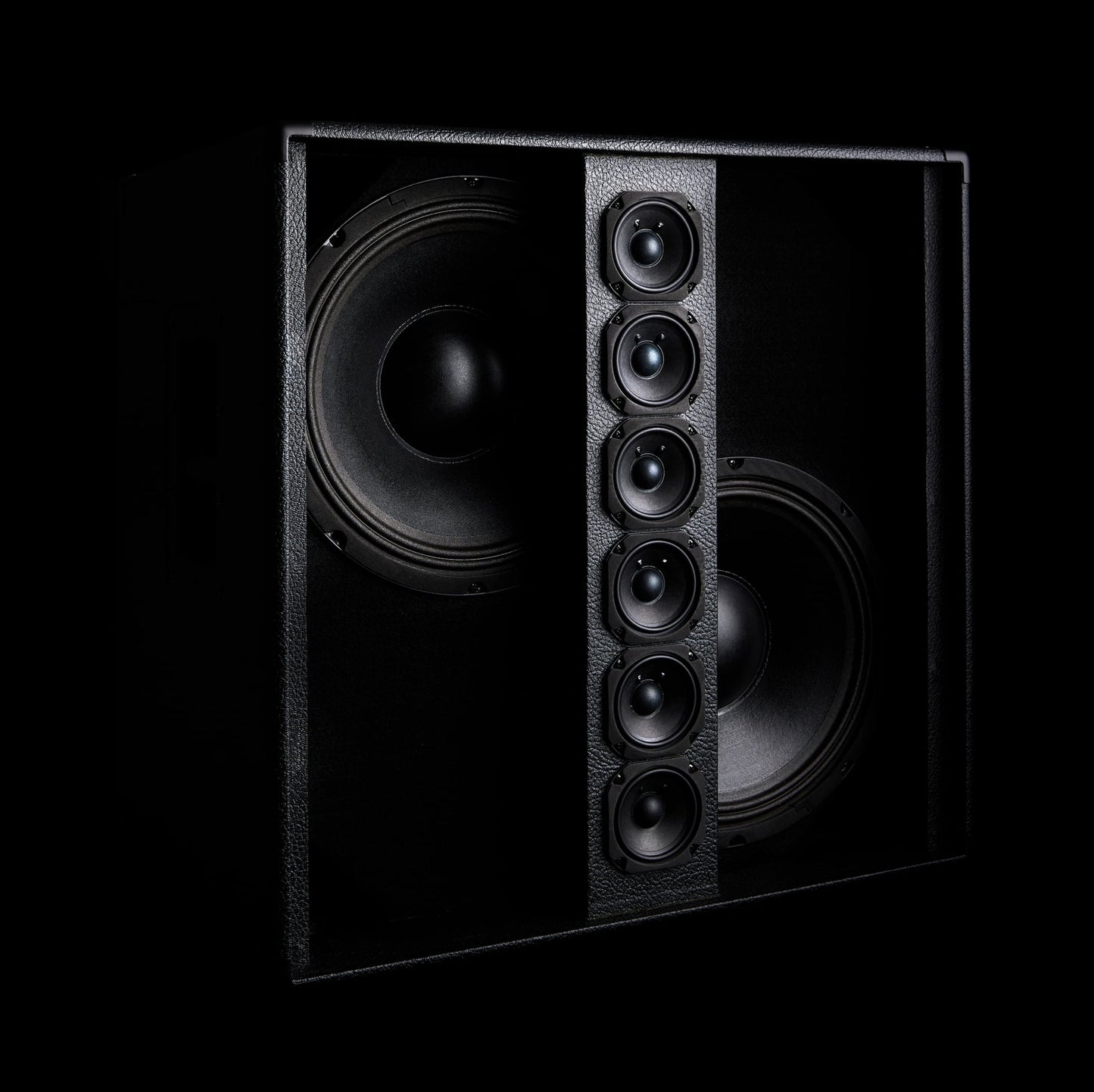

Designed into the same cabinet size as our BA2-410-3 cabinet, this innovative design blends the punch and quickness of two premium offset neodymium 12” drivers, in a vented bass reflex enclosure, and the performance and pattern control of a 6 x 3” Neodymium paper cone driver line array element.  The placement of the line array in front, and between the two offset 12” woofers further provides an extremely broad projection pattern, immediate quickness and clarity that is not possible with many stacked 2 x 12″ designs.

Also due to line array principles the all-important mid and high frequencies have a much wider horizontal dispersion with a more controlled vertical pattern. This offers the most even projection possible around the perimeter of the stage and audience.

The benefits of this design are exponential for the player:

• Delivering full, deep, low frequency response from the high efficiency 2 x 12″ woofers — doing what they do best, providing excellent support of the fundamental for the lower strings of the instrument.
• Smooth, seamless, clear, and articulate mid-range to high frequency transition across the audio spectrum.
• Broad horizontal dispersion far exceeding conventional woofer/tweeter combinations.
• Providing a much more open, smoother midrange and high frequency response because of the ideal natural characteristics of the mid-high frequency array when compared to a conventional tweeter that cannot reproduce the crucial midrange frequencies without pattern control or un-natural distortion.

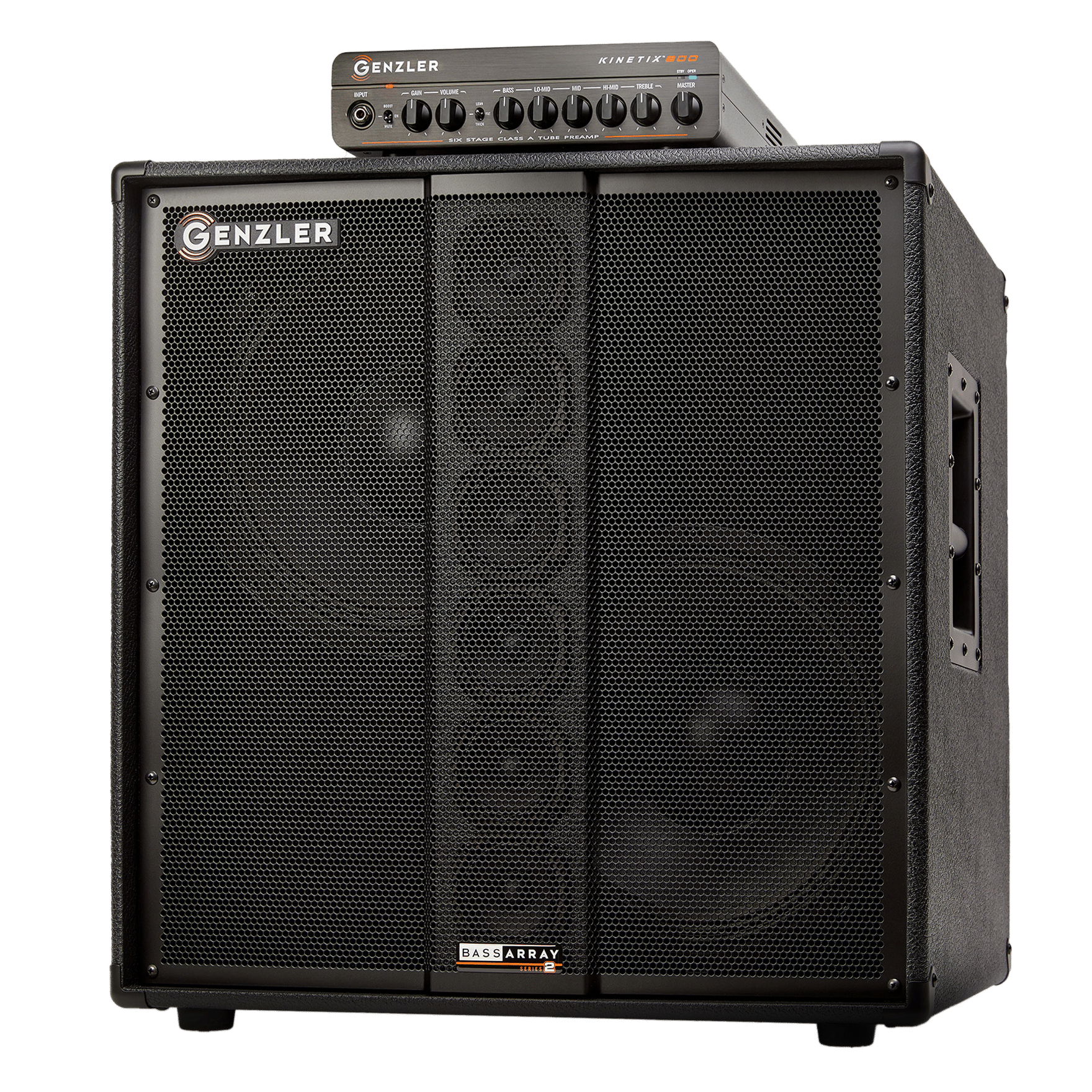

The BA2-212-3 is an extremely versatile, lightweight (47 lbs) 800 watt, 4-ohm cabinet, and is ideal for those players that need the highest powered, most dynamic performance possible, in a single, compact, cabinet design. And for the ultimate big stage rig, it is an ideal choice in combination with our BA2-115-3SLT cabinet.

Features

• Neodymium 12” Woofers w/6 x 3” Neodymium Line Array Drivers
• Ported Cabinet Design
• Cabinet Built w/Lite-ply Poplar Plywood
• Side Mounted, Metal, Recessed Handles
• Dual Speakon® and ¼” Input Jacks

Specifications

Shipping Data

• Carton Dimensions:  27”H x 27”W x 22”D
• Shipping Weight:  57 Lbs

Input Panel/Crossover Network

• Custom designed 6 dB/octave slopes in balance with the acoustical controls of each enclosure.

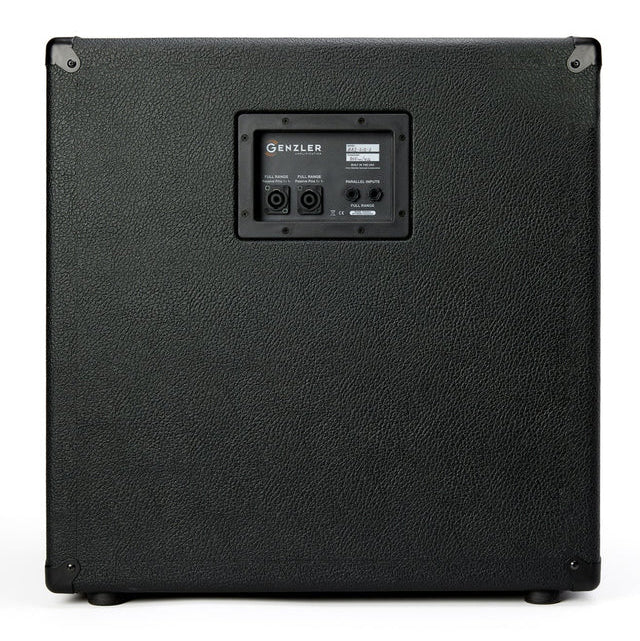

• Two — Speakon® NL-2 connector and two – ¼” sealed jacks; to reduce rear cabinet air loss and noise.

Speaker Components

• Two premium neodymium 12″ loudspeakers utilizing a fiberglass former voice coil with a unique dual-wound (inside/outside winding) design for increased power handling and thermal capacity.
• Six premium neodymium 3″ full-range, mid/high cone drivers utilizing a fiberglass former voice coil, a unique dual-wound (inside/outside winding) design for increased power handling and thermal capacity. These drivers are loaded into a sealed line array stack.

Cabinet

• Cabinet Built w/Lite-ply & Baltic Birch Plywood
• Heavy-duty textured black vinyl.
• Black metal corners and heavy-duty metal recessed handles. Custom, curved grille with a unique center “pleat” to protect the array column.
• Large rubber feet.
