Bartolini

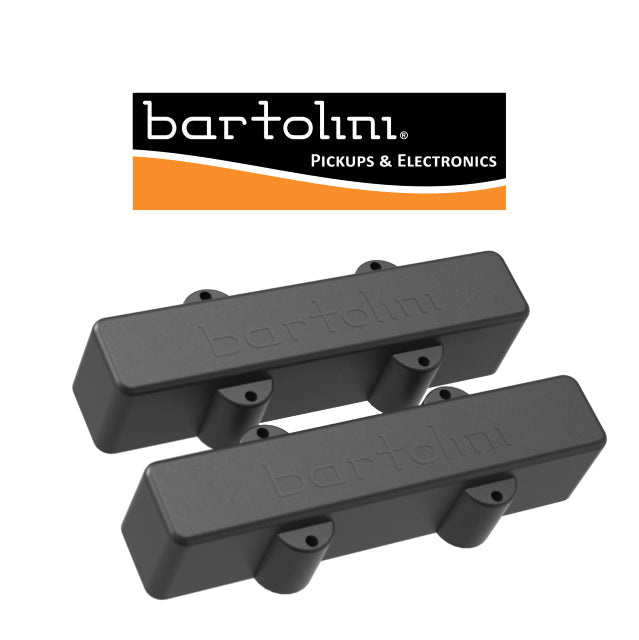

Bartolini Original Dual Coil J-Bass 4-String Pickups

Bartolini Original Dual Coil J-Bass 4-String Pickups

1 in stock

Regular price $199.00 USD
Regular price Sale price $199.00 USD
Sale Sold out
Shipping calculated at checkout.

Description

The original Bartolini design gives you the timeless tone that started it all – full and warm for that vintage voice you’ve been craving, enhancing the natural voice of your bass.

These dual coil inline pickups are hum-cancelling even when only playing the neck or bridge pickup, so they are well suited for studio or stage. They have a blade core design, so you don’t have to worry about string alignment. Original Barts bring out your voice, low and clear.

In the early ‘70s, Bill Bartolini leveraged his deep knowledge of acoustics to create pickups that produce the most natural, musical voice from the instrument. He added shielding to block radio signals and noise. He developed a method of sealing, isolating, and stabilizing the coils so they could be encapsulated in epoxy to eliminate “microphonics” – the nasty noise you get when you touch typical pickups.

Available in balanced specific bridge and neck versions which can be purchased individually or in these sets:

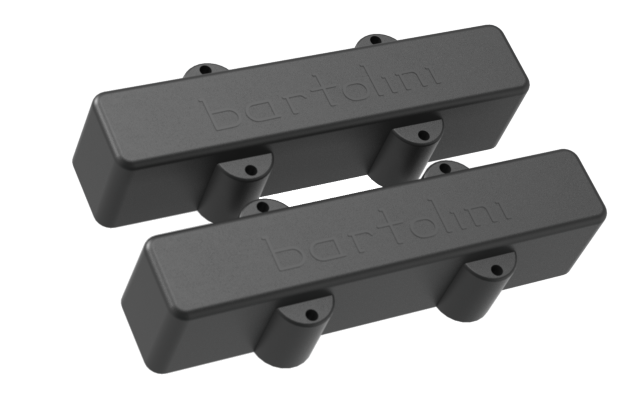

9J1 L/S: Long bridge / short neck

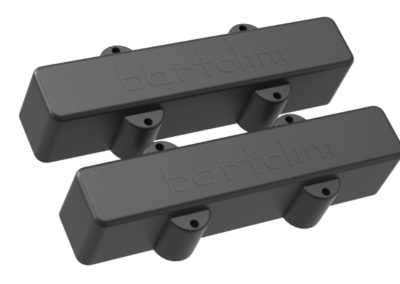

9J1 L/LN: Long bridge / long neck

9J1 S/SB: Short bridge / short neck

Technical Details

Coil Structure:

Dual Inline Hum-killing

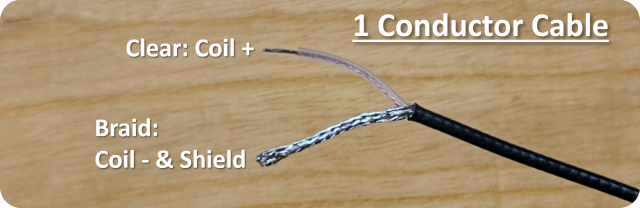

Cable Type:

Shielded Coaxial Hot Core

Magnetic Circuit:

2 types of carbon steel powered by ceramic (ferrite) magnets

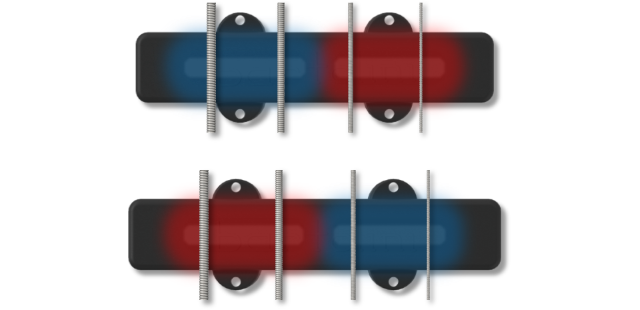

Opposite polarity for bass and treble coils for neck and bridge pickups

Coil Specs For Individual 9J Pickups:

9J-S1 - Neck

  • DC Resistance: ~6.1KΩ
  • Resonant Frequency: ~5.7KHz
  • Sensing Width: 2.52" [64mm] Max 1.89" [48mm] Min

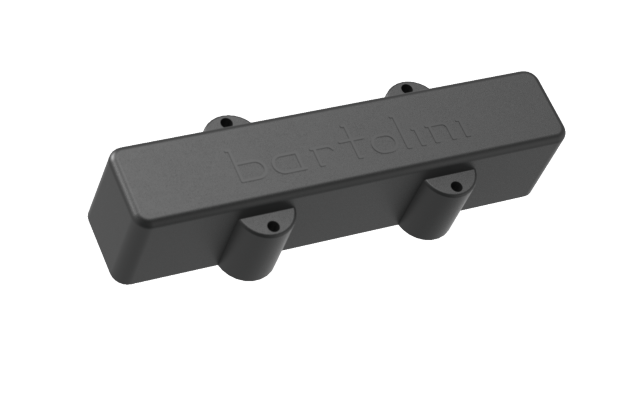

9J-L1 - Bridge

  • DC Resistance: ~6.7KΩ
  • Resonant Frequency: ~4.9KHz
  • Sensing Width: 2.52" [64mm] Max 1.89" [48mm] Min

9J-LN1 - Neck

  • DC Resistance: ~6.1KΩ
  • Resonant Frequency: ~5.7KHz
  • Sensing Width: 2.52" [64mm] Max 1.89" [48mm] Min

9J-SB1 - Bridge

  • DC Resistance: ~6.7KΩ
  • Resonant Frequency: ~4.9KHz
  • Sensing Width: 2.52" [64mm] Max 1.89" [48mm] Min

Shape Details

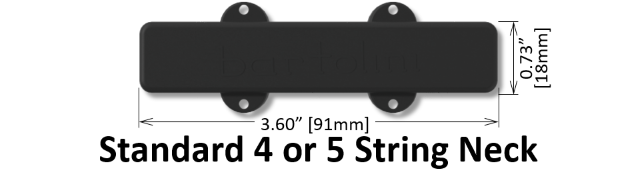

Standard Short J-Bass (-S and -SB)

3.6" [91.4mm] Long, 0.73" [18.5mm] Wide, 0.83" [21.1mm] Thick + 0.11" [2.8mm] Cable

4 Standard J Pickup Mounting ears for your #3 or #4 screws

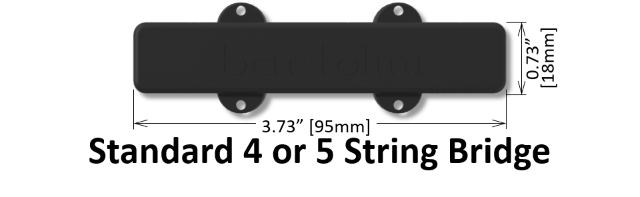

Standard Long J-Bass (-L and -LN)

3.73" [94.7mm] Long, 0.73" [18.5mm] Wide, 0.82" [20.8mm] Thick + 0.11" [2.8mm] Cable

4 Standard J Pickup Mounting ears for your #3 or #4 screws

Documents

Bartolini Wiring Diagram PDF

Bartolini J-Bass Shell Sizes
