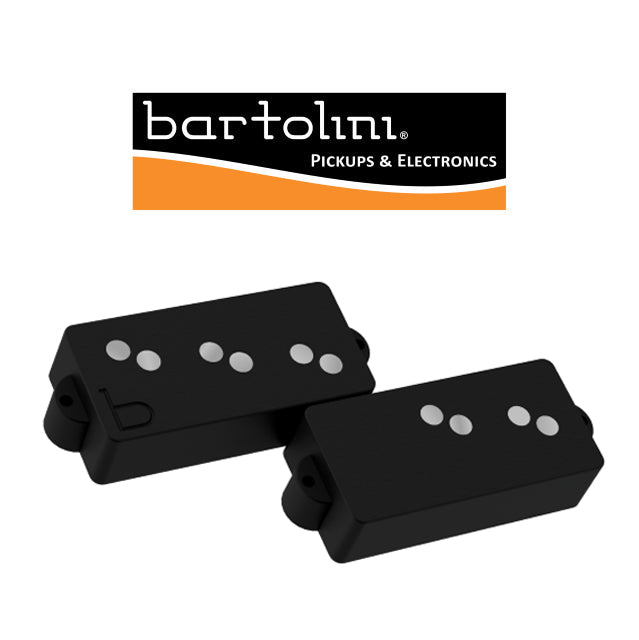

Bartolini b-axis PB5-19 P-Bass 5-String Pickup

Description

Bartolini's b-axis P-Bass® Pickups are all about enormous, clear tone. They feature a new and unique fully encapsulated Alnico V exposed pole design, and yet they are still fully shielded like all our enclosed pickups. The cable is shielded as well. They are sweat-proof and won’t make nasty noises if you touch them.

b-axis pickups are super punchy and bright, but also warm. They have outstanding articulation, attack, and harmonic response. Musicians who play jazz, rock, country, gospel, and hip-hop are already finding their voice in b-axis pickups.

b-axis PB4 Technical Details

Coil Structure:

Split P Hum-killing

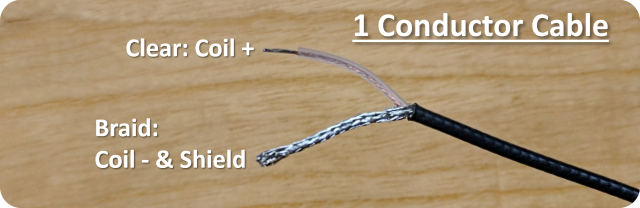

Cable Type:

Shielded Coaxial Hot Core

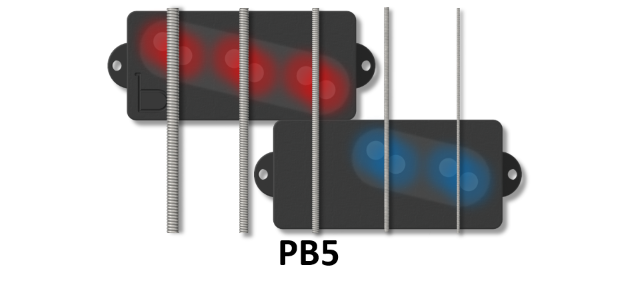

Magnetic Circuit:

Offset Alnico V pole magnets with controlled charge and copper, and aluminum field shaping
Bass coil North and treble coil South

b-axis PB4 Coil Specs

DC Resistance: ~12.6KΩ
Resonant Frequency: ~4.4KHz
Sensing Width: 2.63" [66.7mm] Max

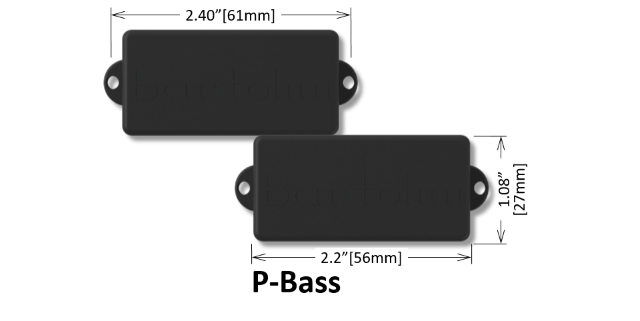

Shape Details

P-Bass
2.2" [55.9mm] Long
1.08" [27.4mm] Wide
0.69" [17.5mm] Thick + 0.11" [2.8mm] Cable
2 Standard P Pickup Mounting ears on each part for your #3 or #4 screws

Wiring Diagram

Bartolini Wiring Diagram PDF
