Bartolini

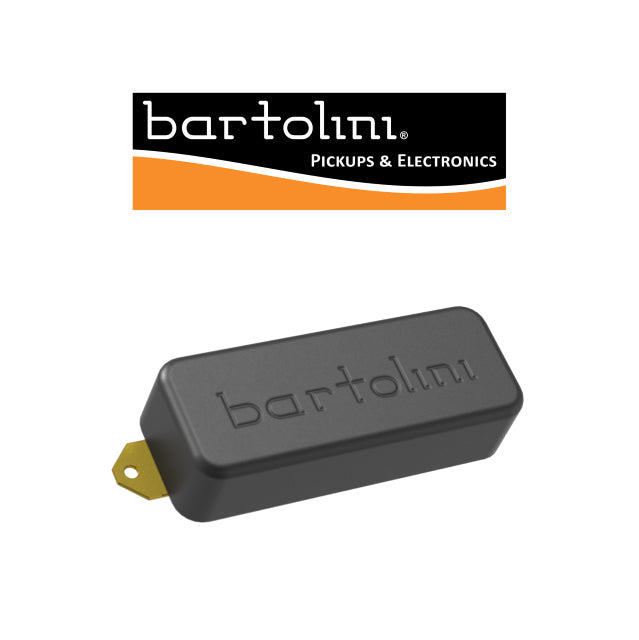

Bartolini 6R Rickenbacker 4-String Pickups

Bartolini 6R Rickenbacker 4-String Pickups

Out of stock

Regular price $152.00 USD
Regular price Sale price $152.00 USD
Sale Sold out
Shipping calculated at checkout.

Description

Original Bart upgrade pickups allow you to keep the legendary “Rickenbacker tone,” but without the clank and noise of the Rick’s abrasive high end. They provide bottomless lows and low-mids for your Rickenbacker 4001. 6RC and 6RT have long been the industry standard pro-level upgrades for Ricks. The neck pickup is a split coil design much like a P-Bass in a single pickup. The bridge pickup is a dual coil humbucker. Both pickups are fully hum-cancelling when played solo or together. The Originals are full and warm for that vintage voice you’ve been craving, enhancing the natural voice of your bass. You’ll never find lower tones produced with higher clarity!

Made for pro-level bass players, they are fully sealed and shielded making them sweat-proof, quiet if you touch them, and immune to invisible noise from stage lights and studio power supplies. The cables are shielded too.

6R Technical Details

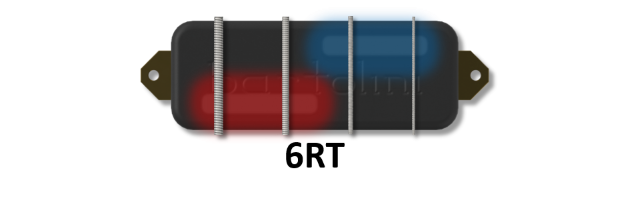

Coil Structure: 6RT - Split P Hum-killing

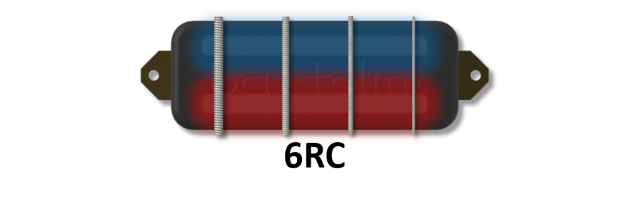

Coil Structure: 6RC - Dual Coil Humbucker

Magnetic Circuit:

  • 2 types of precision CNC milled carbon steel, brass, and copper powered by ceramic (ferrite) magnets
  • projected for focused aperture
  • Neck coil South and Bridge coil North for both positions

6RT - Neck

  • DC Resistance: ~5.2KΩ
  • Resonant Frequency: ~5.6KHz
  • Sensing Width: 2.01" [51mm] Max

6RC - Bridge

  • DC Resistance: ~4.3KΩ each coil
  • Resonant Frequency: ~5.1KHz
  • Sensing Width: 2.01" [51mm] Max

Shape Details

6R Shape

  • 2.79" [70.9mm] Long, 1.1" [27.9mm] Wide, 0.67-0.77" [17-19.6mm] Thick
  • 0.11" [2.8mm] Cable
  • Brass bracket with 6-32 tapped holes

Wiring Diagram

Bartolini Wiring Diagram - 1 Conductor Cabled Pickups

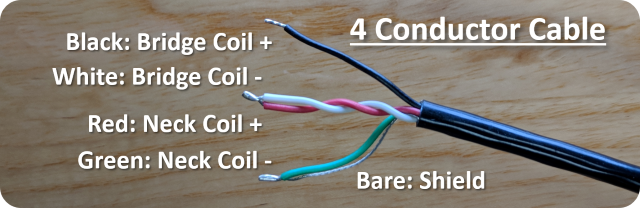

Bartolini Wiring Diagram - 4-Conductor Dual Coil Humbuckers
