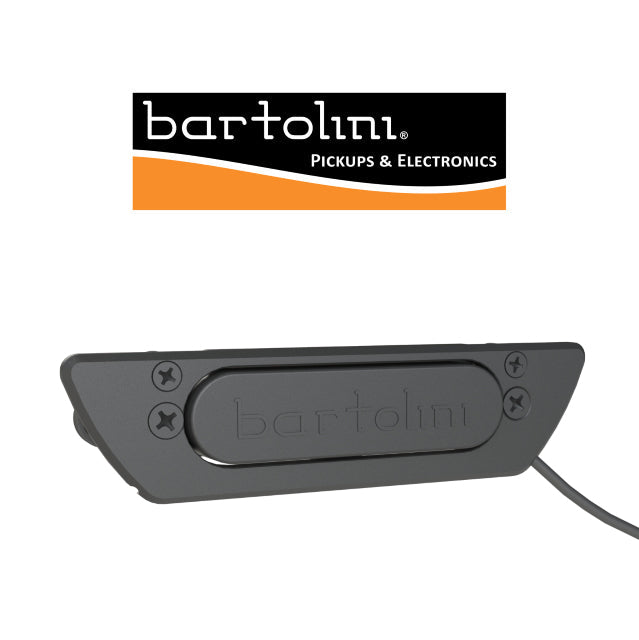

Bartolini 3AV Acoustic Guitar Soundhole Pickup
Bartolini 3AV Acoustic Guitar Soundhole Pickup
6 in stock
Couldn't load pickup availability
Description
Make your acoustic guitar sound great through an amp with the legendary 3AV and its new, easier-to-install bracket.

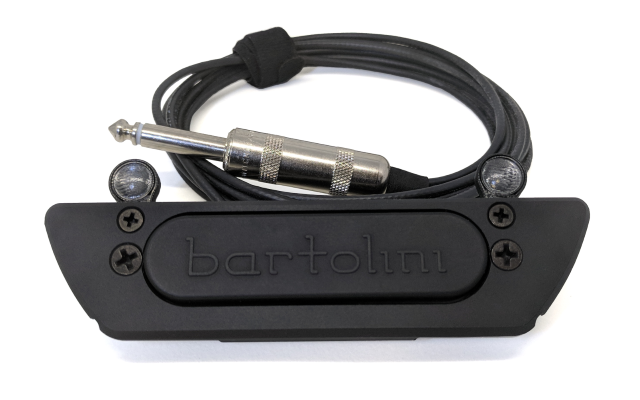

Bartolini's legendary 3AV Hum-Killer Acoustic Guitar Soundhole pickup provides an incredibly natural sounding acoustic voice: bright and clear with B-string compensation and a 10-foot cable. It now features a new, easy to install, clean look mounting bracket. It is designed to be installed on the bridge side of a 3-1/2” to 4-1/2” soundhole for the best tonal response.
3AV Technical Details
Coil Structure:
Stacked Coil Hum-Killing
Cable Type:
10 Foot Shielded Coaxial Cable with 1/4" Plug
Magnetic Circuit:
2 types of precision CNC milled carbon steel, brass, and copper powered by ceramic (ferrite) magnets

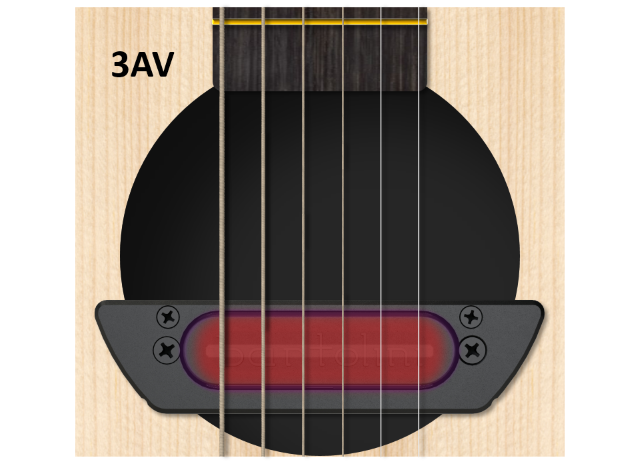

projected for focused aperture and B-string mass compensation with field isolation of hum-killing coil
3AV Coil Specs
DC Resistance: ~2.8KΩ
Resonant Frequency: ~9.2KHz
Sensing Width: 2.17" [55mm] Max
Shape Details
2.75" [69.9mm] Long
0.69" [17.5mm] Wide
0.78" [19.8mm] Thick + 0.11" [2.8mm] Cable
Fits 3-1/2" - 4-1/2" Soundholes
Installation Guide
